Company Profile
Shunte Electric Equipment Co., Ltd. is a Sino-foreign joint venture jointly established by Shunte Electric Co., Ltd. (formerly Shunde Special Transformer Factory) and Schneider Electric of France. Founded in 1988, the company has developed for more than 30 years. It currently occupies a land area of 120,000 square meters, with a building area of 80,000 square meters, and a registered capital of 1.09 billion RMB. The company has about 1,200 employees, including nearly 300 engineering and technical personnel. It has a postdoctoral research workstation approved by the Ministry of Human Resources of China, a transformer/reactor laboratory accredited by national authorities, and has passed the secondary metrology assurance system certification as well as BV certification for ISO9001:2015 quality management system, ISO14001:2015 environmental management system, and ISO45001:2018 occupational health and safety management system. With strong R&D capabilities, comprehensive testing facilities, continuous product innovation, and effective quality control, the company has become a globally renowned supplier of power transmission and distribution equipment and a leader in China's dry-type transformer industry.
The company specializes in manufacturing high-quality electrical equipment such as dry-type transformers, prefabricated substations, combined transformers, medium- and low-voltage switchgear, reactors, and grounding systems. Annual production capacities include 12 million kVA of dry-type transformers, 2,000 prefabricated substations, 3,000 combined transformers, 4 million kvar of dry-type reactors, 2 million kvar of oil-immersed reactors, 800 sets of grounding devices, and 8,000 sets of medium- and low-voltage switchgear. Over the years, the company has led or participated in the formulation of more than 30 national and industry standards, and has repeatedly provided suggestions for the development and revision of IEC standards. Its products—including dry-type transformers, box-type substations, switchgear, and reactors—have passed Energy Certification, the 2020 version of Energy Efficiency Certification for 10kV distribution transformers, and 3C certification for low-voltage switchgear.
The company’s various types of reactors and grounding systems have been widely applied in the State Grid, national key laboratories, nuclear power plants, subways, steel, and energy industries, with over 30,000 units/sets in operation, including more than 3,000 units exported. Especially in the field of customized special reactors, the company has strong R&D capabilities. Products such as tightly-coupled reactors, cast adjustable reactors, and reinforced fully enclosed dry-type air-core reactors are reliable and safe in operation, solving a series of industrial application problems and receiving high praise from users.
Project Overview
The transformer production line is located in the soon-to-be-built Plant No. 5 of Shunte Electric Equipment Co., Ltd. It is mainly used for the production of dry-type transformers with voltage levels of 35kV and below, and finished product weights not exceeding 25 tons. The entire production and material transfer process for dry-type transformers is planned across two floors of Plant No. 5. Automated logistics and handling equipment such as AGV automatic conveying systems, RGV automatic conveying systems, and gantry robots are deployed to realize automation in logistics handling throughout the production process, aiming to reduce manpower and improve efficiency.
Construction Scope
This is a turnkey project including complete design, manufacturing, installation, commissioning, training, and delivery. Highlights of the project include:
• Full-process, full 3D digital modeling + process optimization
• 5G + all-optical network + full-process information system integration
• Equipment interconnection + 100% data collection + digital twin
• Information data + industrial cybersecurity + efficient operation and maintenance
Ø Construction of the automated production line
The line integrates and implements the entire process of dry-type transformer manufacturing, including raw material/semi-finished product warehousing, inner mold assembly, winding, outer mold assembly, casting, curing, mold removal, automatic coil cutting and grinding, transformer final assembly, and internal logistics handling. In addition, the design and construction of the workshop’s air conditioning system and the personnel/material air shower dust removal system are also included.

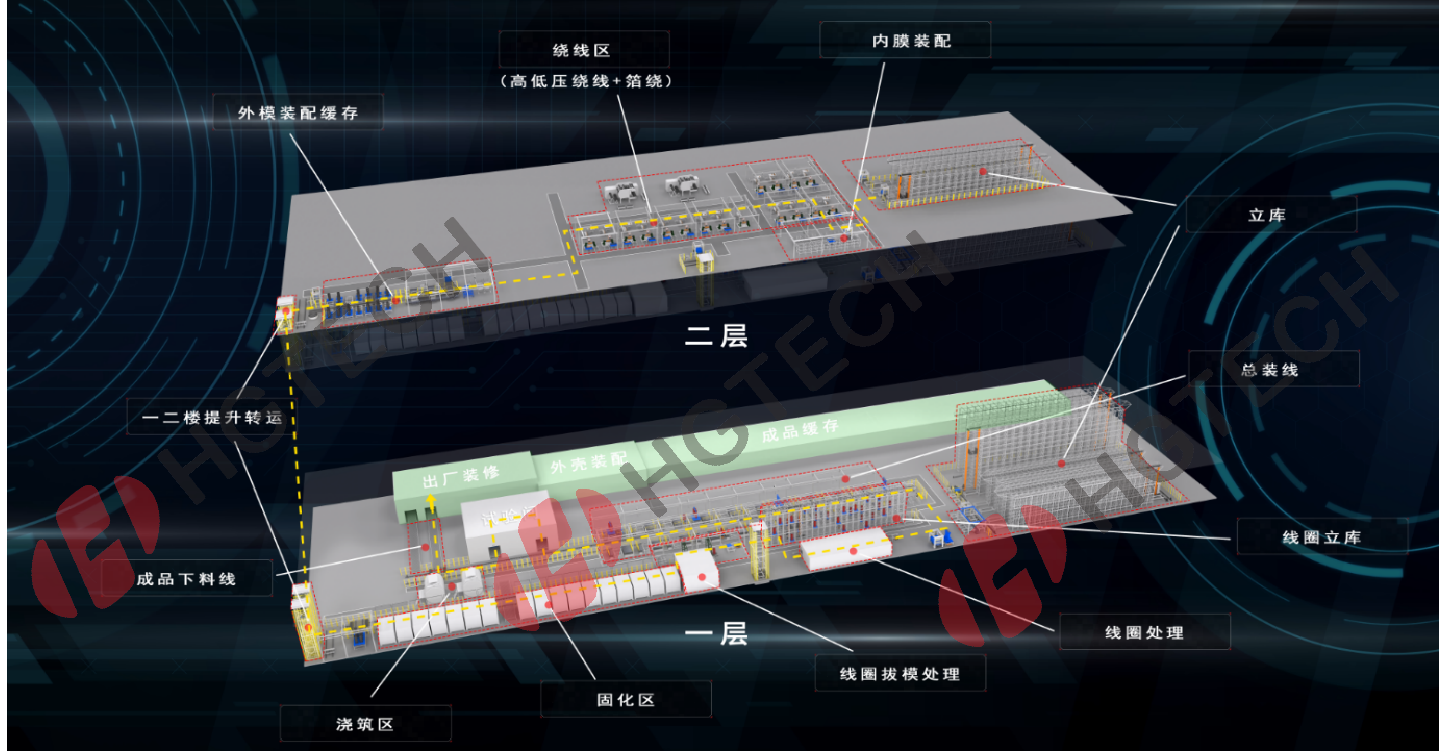

Figure: Overall Layout Plan of the Production Line
Ø Digital System Architecture
By integrating various information systems, the project connects the entire process from design and process planning to manufacturing. This ensures transparent production, proactive control, closed-loop quality management, and green manufacturing. The systems involved include ERP, WMS, PDM, AGV scheduling, security systems, and HR systems.
Figure: Business Architecture of the Smart Factory Project
The project leverages 5G technology, taking advantage of its high bandwidth, ultra-low latency, and reliability. Edge data acquisition boxes with 5G modules are installed on key production and testing equipment. AGVs are equipped with 5G wireless communication modules to enable real-time data collection and analysis, enhancing transparency and efficiency across the production process.
Value and Benefits
Through the deployment of automated warehousing, intelligent logistics, production line automation, and information systems, the project has realized a smart manufacturing workflow for dry-type transformers—from component assembly to finished product storage. The production line features automated production, intelligent warehousing and distribution, online testing, virtual manufacturing, intelligent control, and smart decision-making.
