Sichuan Jiaojian Steel Structure Intelligent Cutting Project
2023-06-27 14:17
Large Medium Small

1 Company Profile

Sichuan Steel Structure Intelligent Manufacturing Co., Ltd. is a controlling subsidiary of Sichuan Transportation Construction Group Co., Ltd. The company focuses on the fabrication and installation of various bridge steel structures, adhering to the principles of "intelligentization, digitization, standardization, lean management, and green low-carbon development." It aims to become a leading intelligent steel structure bridge manufacturing enterprise in Western China and a prominent player nationally.

2 Project Overview

The project is located within the factory of Sichuan Steel Structure Intelligent Manufacturing Co., Ltd., in the Ganmei Industrial Park South Zone, Meishan City, Sichuan Province. The procured advanced laser cutting equipment will be used for steel plate cutting and nesting in the combined workshop. The project also applies a material cutting production management system to enhance scheduling efficiency and accuracy, refine process control granularity, and promote the transformation of the cutting workshop into an intelligent cutting facility.

3 Construction Content

• Cutting Equipment

The cutting workshop includes preprocessing, plate storage, cutting, and finished part storage zones. Steel plates sequentially pass through these zones for respective processing. Nine 20kW laser cutting machines are installed in the cutting area as shown in the layout below, arranged across six bays. The equipment supports large-format plates (36m × 3.5m), bevel cutting, and marking/line-scribing functions. The laser source, head, operating system, bed, and working surface are all optimized with high-end configurations.

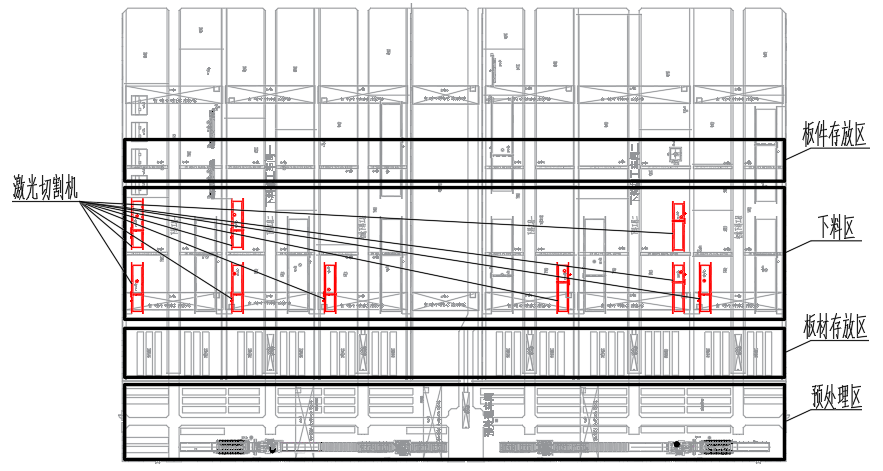

Layout of Combined Workshop Cutting and Related Zones

Figure: Layout of Combined Workshop Cutting and Related Zones

No. Equipment Name Specification Model Unit Quantity Remarks
1 Laser Cutting Machine 3.5m × 18m WALC1835F-20000 pcs 1
2 Laser Cutting Machine 3.5m × 18m (Bevel) WALC1940P-20000 pcs 2 Bevel cutting requires guide rail travel of 4m × 19m
3 Laser Cutting Machine 3.5m × 36m WALC3635F-20000 pcs 1
4 Laser Cutting Machine 3.5m × 36m (Bevel) WALC3740P-20000 pcs 3 Bevel cutting requires guide rail travel of 4m × 37m
5 Laser Cutting Machine 3.5m × 36m (Bevel) WALC3740P-20000 pcs 2 Bevel cutting with marking/line-scribing; guide rail travel 4m × 37m

Table: Equipment Specifications and Models

Note: WALC model represents large-format laser cutting machines. The digits indicate guide rail travel length and width in meters (e.g., 1835 means 18m × 3.5m). 'F' stands for flat cutting model, 'P' for bevel cutting model, and 20000 indicates laser power of 20kW.

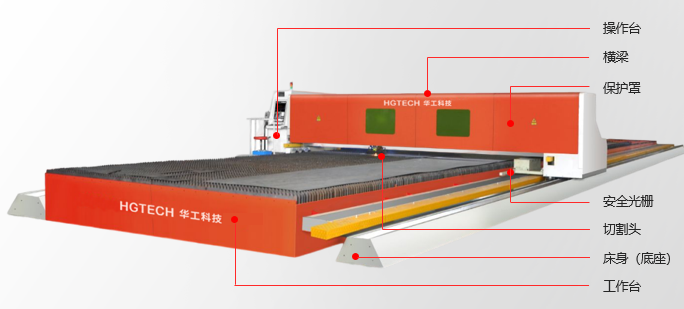

Equipment Diagram

Figure: Equipment Diagram

• Cutting MES System

The system focuses on process control of cutting operations, addressing issues such as lack of real-time cutting data acquisition, inaccurate cutting time statistics, inefficient management workflows, poor traceability of cutting quality, and absence of data analytics.

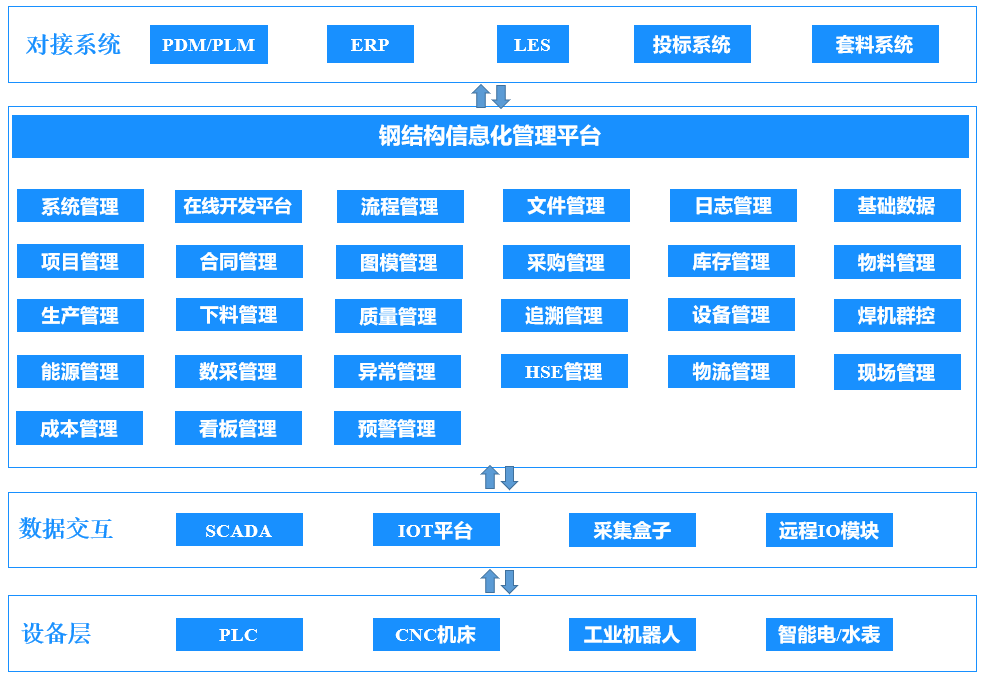

Cutting MES System Architecture

Figure: Cutting MES System Architecture

4 Benefits and Value

By widely applying large-format, high-speed, and high-precision laser cutting equipment integrated with a cutting MES system, this project achieves full digital management of the cutting production process. This enables lean management improvements, enhances workshop management, and helps build an intelligent factory for steel structure bridge cutting.
